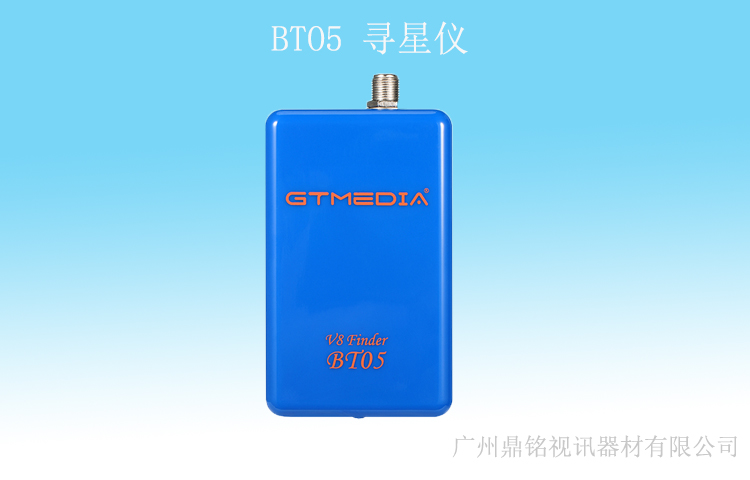

Gstar-V8 Finder BT05 藍牙尋星儀 尋星儀 Satellite Finder
更新：2022/3/4 12:17:45 點擊：
- 產品品牌 Gstar
- 產品型號 Gstar-V8 Finder BT05
- 產品描述
尋星儀，是一種用于衛星接收天線安裝與調整的簡便儀表，它可以作為調整天線方向、饋源位置和極化角等項目的指示器，使天線達到最佳的位置。尋星儀實質上也是一種微波信號電平顯示放大器.........
產品介紹
產品名稱：Gstar-V8 Finder BT05 藍牙尋星儀 尋星儀 Satellite Finder
產品型號：Gstar-V8 Finder BT05
產品特點：
1. DVB Finder DVB-S2多標準解調解碼；
2.安卓APP和蘋果APP藍牙連接；
3.支持全選星；
4. 內置鋰電池2200mAh；
5、支持LNB短路提示、過載保護；
參數：
| Hardware | Flash Memory | 32MB Serial Flash | |||||
| DDR2 Memory | 512M Bits | ||||||
|
Blue（Flashing:Not connected, Normally on: connected) | ||||||
|
Green light: Power indication (When flicker means low power), | ||||||
| Red light: Charging indicator (Long bright means full charge), | |||||||
| Rear Panel | LNB IN : Frequency Range950MHz to 2150MHz DVB-S/S2 | ||||||
| OFF/ON: Power switch | |||||||
| DC 5V 2A : Charging input | |||||||
| System introduction | DVB-S2 | DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite) | |||||
| DiSEqC1.0support, 13/18V DC @ 300mA MAX,Overload Protection, 0/22K | |||||||
| Multi standard demodulation & decoding | |||||||
|
DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK+3/4, 4/5, 5/6, 8/9, 9/10 Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8 |
|||||||
| VCM mode supported | |||||||
| Dummy frame insertion supported | |||||||
| Automatic standard recognition | |||||||
| Support 1 to 60Mbaud symbol rates | |||||||
| Fast channel blind scan for RF frequency & symbol rate acquisition | |||||||
| High performance equalizer, canceling echo introduced by front end | |||||||
| Simple AGC – Tuner interface | |||||||
| Build in DC cancellers to remove DC component | |||||||
| IQ imbalance compensator | |||||||
| Automatic roll-off factor (0.35/0.25/0.20) detection | |||||||
| Automatic spectrum inversion | |||||||
| Signal quality and statistic, allowing improved monitoring and debug | |||||||
| DiSEqCTM v2.2 modulation output for full control of LNB and satellite antenna | |||||||
| lithium battery | Specification | 18650 Lithium Battery 3.7V 2200mAh 8.14Wh | |||||
| Working normally for about 2 hours, charging for 2 hours (original 5V/2A adapter test) | |||||||
| Packing | Product Dimension | 105*50*18 MM | |||||
| Packaged Size | 140*90*55MM | ||||||
| Carton Size | 435*285*305MM (60pcs/ctn) | ||||||
| Unit Weight | 0.2 Kg with gift box | ||||||
| Carton Qty&Weight | 60 pcs/Carton, 12.5 kgs | ||||||
| Accessories | DVB Finder BOX*1, Power adapter*1, DC USB cable*1, specification*1 | ||||||
| Physicals | Temperature | Operation 0～+45℃; Storage -10~+60℃ | |||||
| Humidity | 20~90%, non-condensed | ||||||
