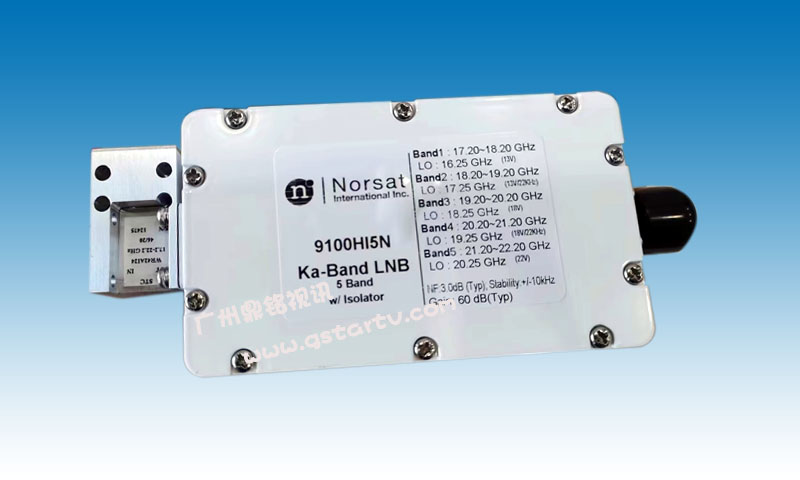

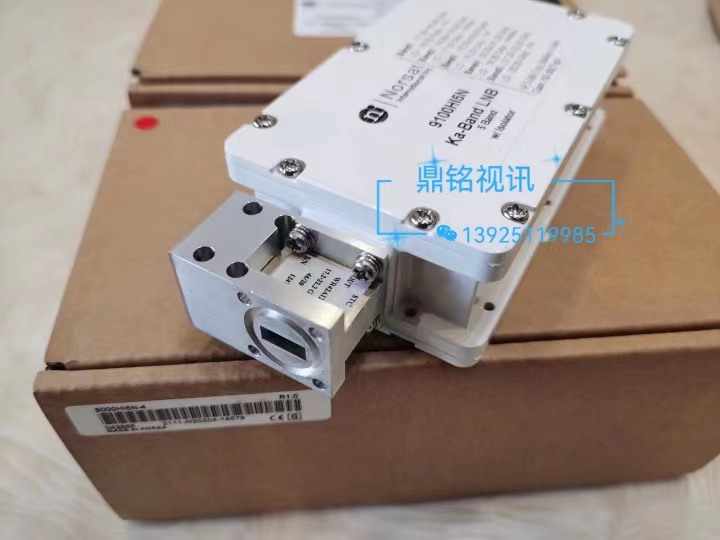

Norsat 9100HI5N 高頻頭 5-Band Ka-Band Ext REF LNB 五本振全頻段Ka高頻頭
- 產品品牌 Norsat
- 產品型號 Norsat 9100HI5N
- 產品描述
產品名稱：Ka全頻帶5本振高頻頭 5-Band Ka-Band Ext REF LNB 產品型號：9000X5N Norsat是高性能，高質量，和無與倫比的耐用性的代名詞。 ...
產品名稱：Ka全頻帶5本振高頻頭 5-Band Ka-Band Ext REF LNB
產品型號：9000X5N
產品特點：
•業界最好的低(本機振蕩器)穩定性
•超低噪音選項•定制選項包括非標準頻率、噪音數字和形狀因素
•普通 lnbs 的庫存和快速運輸
•世界級 norsat 售后支持
產品數據：
KEY SPECIFICATIONS
Band
Ka-Band
Input Frequency Band 1
Ka-Band: 17.20 - 18.20 GHz
Input Frequency Band 2
Ka-Band: 18.20 - 19.20 GHz
Input Frequency Band 3
Ka-Band: 19.20 - 20.20 GHz
Input Frequency Band 4
Ka-Band: 20.20 - 21.20 GHz
Input Frequency Band 5
Ka-Band: 21.20 - 22.20 GHz
Lo Stability
Phase Locked to External Reference
Lo Type
External
Noise Figure
2.5 dB typ
Output Frequency 1
L-Band: 950 - 1950 MHz
Output Frequency 2
L-Band: 950 - 1950 MHz
Output Frequency 3
L-Band: 950 - 1950 MHz
Output Frequency 4
L-Band: 950 - 1950 MHz
Output Frequency 5
L-Band: 950 - 1950 MHz
Product Family
9000X5 Series
RF SPECIFICATIONS
Control Signal 1
13 V
Control Signal 2
13V & 22 KHz tone
Control Signal 3
18 V
Control Signal 4
18V & 22 KHz tone
Control Signal 5
22 V
Conversion Gain
60 dB typ
Input VSWR
3.5 : 1
Lo Frequency 1
16.25 GHz
Lo Frequency 2
17.25 GHz
Lo Frequency 3
18.25 GHz
Lo Frequency 4
19.25 GHz
Lo Frequency 5
20.25 GHz
Output VSWR
2.2 : 1
INTERFACE SPECIFICATIONS
RF Input Connector
WR-42 waveguide grooved
RF Output Connector
N-50 Ohm
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational
-40 to +60°C
Temperature Storage
-40 to +80°C
Weight
550g
PHYSICAL SPECIFICATIONS
Dimensions (LxWxH)
137 x 67 x 39 mm
Norsat是高性能，高質量，和無與倫比的耐用性的代名詞。
Norsat 的 LNB 頻率范圍包括 c、 ku、 ka、 x 、 q 波段的單個和多個 LO(本機振蕩器)。
